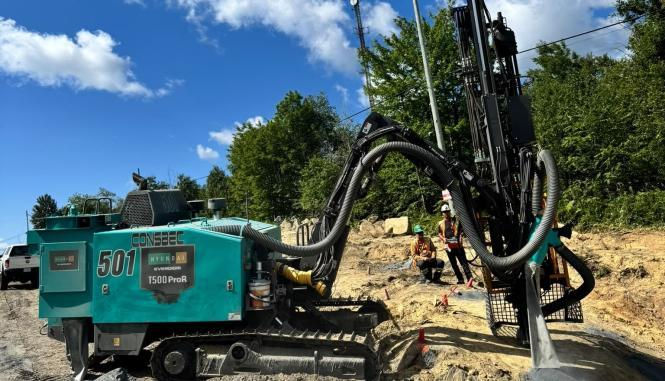

T500ProR
Remote-Controlled Top Hammer Drill Rig
A remote-controlled top-hammer drill for quarry, construction and surface-development work, combining HBC wireless control, 23 kW impact power and multi-rod capability on a non-cabin platform.
Key specifications
- Hole diameter: 76–127 mm (3–5 in)
- Hole depth: 32.9 m (107.9 ft), BDNA R6 configuration
- Drill rod / length: T38 / T45 / T51 — 3,660 mm (12 ft)
- Drill rod capacity: 6+1
- Engine / emissions: Cummins QSB6.7, Stage V
- Rated output: 243 kW (326 hp) at 2,200 rpm
- Free air delivery: 11 m³/min (388 cfm)
- Air pressure: 10.5 bar (152 psi)
- Drifter / impact power: EHD230 / 23 kW (31 hp)
- Operating weight: 15,500 kg (34,172 lb)
Configuration and options
Specifications apply to the quote-approved North American configuration in BDNA R6. General brochure configurations may differ.
Specifications depend on the applicable configuration. Final equipment, options, tooling and services are confirmed in the BDNA quotation, OEM build sheet and order confirmation. Specifications may change.
Technical basis: BDNA-HED-SPEC-T500ProR-NA-R6. Website content reviewed 6 October 2026.
Downloads
T500ProR BDNA technical specification sheet (PDF)
T500ProR product brochure (PDF)
The general brochure describes other configurations. The figures above follow the BDNA R6 technical sheet; confirm the applicable build with BDNA.
