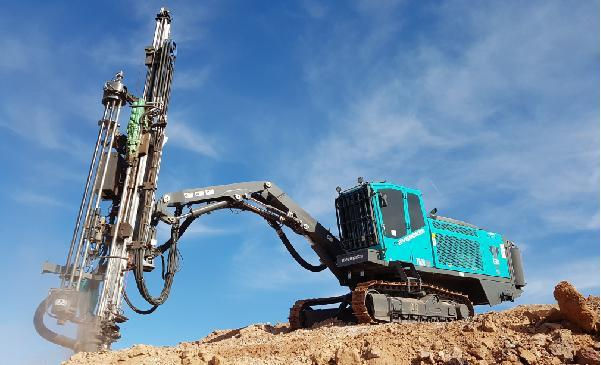

T500Pro
Top Hammer Drill Rig
A production-focused top-hammer drill for quarry, construction and surface-development work, combining the EHD230 drilling system, multi-rod capability and an enclosed operator station.
Key specifications
- Hole diameter: 75–127 mm (3–5 in)
- Hole depth: 25.6 m (84 ft)
- Drill rod / length: T38 / T45 / T51 — 3,660 mm (12 ft)
- Drill rod capacity: 6+1
- Engine / emissions: B6.7, Stage V
- Rated output: 209 kW (280 hp) at 2,200 rpm
- Free air delivery: 11 m³/min (388 cfm)
- Air pressure: 10.5 kg/cm² (149 psi), as stated in R6
- Drifter / impact power: EHD230 / 23 kW (31 hp)
- Operating weight: 14,800 kg (32,628 lb)
Configuration and options
Specifications apply to the quote-approved North American configuration in BDNA R6.
Specifications depend on the applicable configuration. Final equipment, options, tooling and services are confirmed in the BDNA quotation, OEM build sheet and order confirmation. Specifications may change.
Technical basis: BDNA-HED-SPEC-T500Pro-NA-R6. Website content reviewed 6 October 2026.
